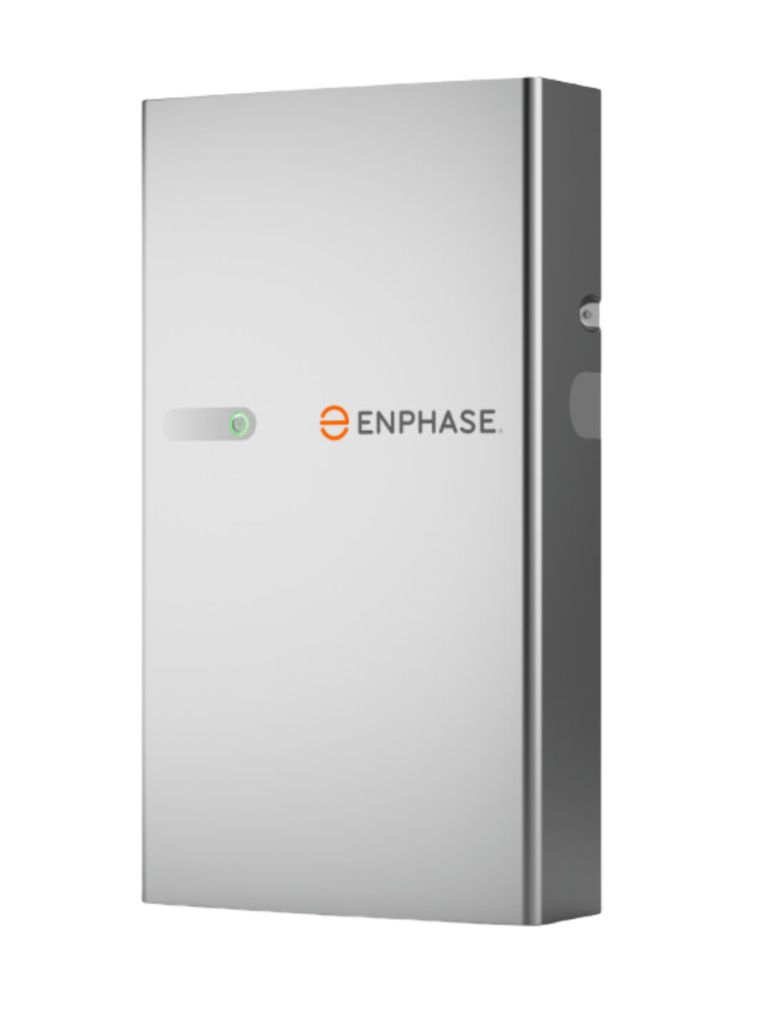

Enphase IQ Battery 5P
The Enphase IQ Battery 5P all-in-one AC-coupled system is powerful, reliable, simple, and safe. It has a total usable energy capacity of 5.0 kWh and includes six embedded gridforming microinverters with 3.84 kVA continuous power rating. It provides backup capability
and installers can quickly design the right system size to meet customer needs.
You can parallel up to 4 batteries. Each extra battery increases the power by 3.86kW (so 2x IQ5 = 10kWh battery and 7.72kW output).
IQ System Controller is needed with this battery
Description
Powerful
• Provides 3.84 kVA continuous and 7.68 kVA peak power • Includes six embedded IQ8D-BAT Microinverters
Reliable
• 15-year limited warranty • Cools passively with no moving parts or fans • Uses wired communication for fast and consistent connection • Updates software and firmware remotely
Simple
• Fully integrated AC battery system • Installs and commissions easily • Supports backup, self-consumption, and time of use (TOU) modes • Offers homeowners remote monitoring and control from the Enphase App • Field replaceable components
Safe
• Tested to meet UL 9540A, the highest industry standard for battery safety • Uses lithium iron phosphate (LFP) chemistry for maximum safety and longevity
Enphase IQ Battery 5P MODEL NUMBER IQBATTERY-5P-1P-ROW
IQ Battery 5P system with integrated Enphase IQ Microinverters and battery management system (BMS) with Battery Controller, includes: • IQ Battery 5P unit (B05-T02-ROW00-1-2) • IQ Battery 5P cover and wall-mount bracket (B05-CX-0550-O; B05-WB-0543-O)
ACCESSORIES AND REPLACEMENT PARTS
IQ8D-BAT-RMA IQ8D-BAT Microinverter for IQ Battery 5P
B05-T02-ROW00-1-2-RMA IQ Battery 5P Battery unit for field replacement
B05-CX-0550-O IQ Battery 5P cover
B05-PM-0550-O IQ Battery 5P pedestal mount
B05-CP-096-O IQ Battery 5P conduit plates. Includes one left side and one right side conduit plate
B05-WB-0543-O IQ Battery 5P wall bracket. Includes one wall-mount bracket and one top shield
IQBATTERY-HNDL-5 IQ Battery 5P lifting handles. Includes one left side and one right side lifting handle
B05-ACFB-080-O IQ Battery 5P AC filter board
B05-BMSRA-0490-O IQ Battery 5P BMS board
B05-CANB-063-O IQ Battery 5P control communication board
B05-RICS-0524-O, B05-RUCS-0524-O IQ Battery 5P control switch preinstalled on wiring cover
OUTPUT (AC) @230 VAC ¹
Rated output apparent power 3.84 kVA
Peak output power 7.68 kVA (3 seconds), 6.14 kVA (10 seconds)
Nominal voltage/range 230/211–264 VAC
Nominal frequency/range 50/47–53 Hz
Rated output current (@230 VAC) 16.7 A
Peak output current (@230 VAC) 33.4 A (3 seconds), 26.7 A (10 seconds)
Power factor (adjustable) 0.8 leading … 0.8 lagging
Maximum output overcurrent protection 20 A per unit
Inverter topology Isolated (HF transformer)
Interconnection Single phase
Protection class I
Overvoltage category III
AC round trip efficiency2 90%
BATTERY
Usable capacity 5.0 kWh
DC round trip efficiency 96%
Nominal DC voltage 76.8 V
Maximum DC voltage 86.4 V
Ambient operating temperature (charging) -20°C to 50°C non-condensing
Ambient operating temperature (discharging) -20°C to 55°C non-condensing
Optimum operating temperature range 0°C to 30°C
Chemistry Lithium iron phosphate (LFP)
